Grain Compaction
Application ID: 145401
Grain compaction is the process by which granular material is placed in a container and compressed with an external pressure. It can be used to increase the packing density and alter the mechanical and thermal properties of the resultant samples, and it is thus a crucial step in many manufacturing applications — especially in powder metallurgy and battery calendaring. Simulating grain compaction enables accurate prediction of the evolving packing fraction and provides a quantitative assessment of its dependence on compaction pressure.

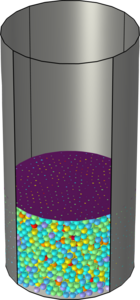

In this model, 5000 grains are released into a cylindrical container, and a constant external pressure is applied to the top wall (called the piston) that compresses the grains underneath. The piston's motion is specified using a force balance equation: a second-order 1D equation. A Parametric Sweep study step is used to study the effect of the pressure on various qualities of the resultant sample, including its packing fraction and height.
案例中展示的此类问题通常可通过以下产品建模:
您可能需要以下相关模块才能创建并运行这个模型，包括：
建模所需的 COMSOL® 产品组合取决于多种因素，包括边界条件、材料属性、物理场接口及零件库，等等。不同模块可能具有相同的特定功能，详情可以查阅技术规格表，推荐您通过免费的试用许可证来确定满足您的建模需求的正确产品组合。如有任何疑问，欢迎咨询 COMSOL 销售和技术支持团队，我们会为您提供满意的答复。
