Modifying Imported CAD Geometry with the Deformed Geometry Interface

Application ID: 17017

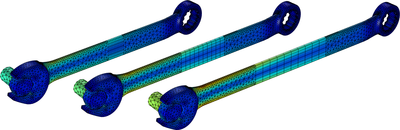

When you are working with foreign CAD or ECAD data, such as files in the STEP, GDS, or IGES file formats, or any of the other supported formats, you may think that you need to re-import a new CAD file and start your modeling over from scratch if you want to study a change in size or shape. But, in fact, you can modify the geometry that you've imported with some clever usage of the Deformed Geometry interface in COMSOL Multiphysics. This model demonstrates how to do this.

本案例使用的模块如下:

针对您的实际问题,建模所需的 COMSOL® 产品组合取决于定义该问题的物理场接口。特定的物理场接口可能同时包含于多个产品中(参见技术规格表获取更多详细信息)。在您为一个项目确定最佳的产品组合时,我们建议您首先明确自身的所有需求,然后通过以下几种方式依据需求选取所需的产品:了解各个产品的功能、咨询 COMSOL 销售和技术支持团队,以及使用试用许可证进行软件试用。
