Acoustic Transmission Loss through Periodic Elastic Structures

Application ID: 1974

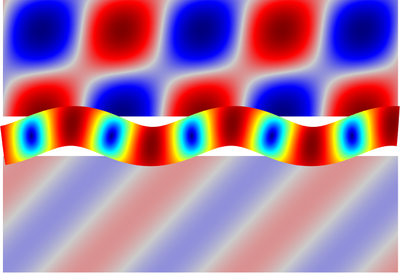

In this model, two fluids are separated by a solid elastic structure. An acoustic pressure wave impacts the structure resulting in a reflected wave and a wave transmitted with a loss through the structure. This model investigates the transmission loss through the structure. The effects of incident angle, frequency, and dampings are studied.

Important features used: Acoustic-structure interaction with arbitrary incident angle, scattered field formulation, the perfectly matched layer (PML), and periodic Floquet boundary conditions.

Ref: S. Dey and J. J. Sirron, Proceedings of IMECE 2006, ASME 2006 International Mechanical Engineering Congress & Exposition, Chicago, USA

本案例使用的模块如下:

声学模块

针对您的实际问题,建模所需的 COMSOL® 产品组合取决于定义该问题的物理场接口。特定的物理场接口可能同时包含于多个产品中(参见技术规格表获取更多详细信息)。在您为一个项目确定最佳的产品组合时,我们建议您首先明确自身的所有需求,然后通过以下几种方式依据需求选取所需的产品:了解各个产品的功能、咨询 COMSOL 销售和技术支持团队,以及使用试用许可证进行软件试用。
