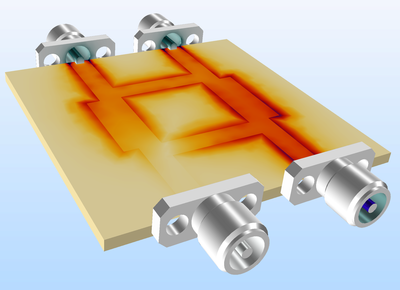

分支线耦合器

Application ID: 11727


分支线耦合器,也就是正交(90度)混合器,是一种四端口网络设备,包含一个输入端,两个相差 90 度的输出端,以及一个隔离端。由于对称性,任意一个端口都可以作为输入端。本案例的目标是计算 S 参数,观察工作频率时的匹配、隔离和耦合。

This model is included as an example in the following products:

RF 模块

The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the 技术规格表 and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
