MOSFET 击穿

Application ID: 15583

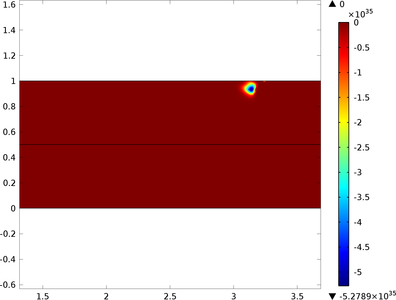

本例显示如何使用瞬态求解器来模拟一个 MOSFET 在碰撞电离作用下击穿。一般情况下,MOSFET 通常在一个给定的门电压的汲-源电压的三个范围内工作。刚开始时,电流-电压是线性关系,这是欧姆区;随着汲-源电压的增加,汲取电流开始饱和,这是饱和区;当汲-源电压继续上升达到击穿范围时,电流随着电压变为指数关系。这是由碰撞电离导致的。

This model is included as an example in the following products:

半导体模块

The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the 技术规格表 and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
