Point Source in 2D Jet: Radiation and refraction of sound waves through a 2D shear layer

Application ID: 16685


This is a benchmark model for the linearized Euler interface of the Acoustics Module. The model is from the NASA "Fourth Computational Aeroacoustics (CAA) Workshop on Benchmark Problems (2004)". The model results are compared to an analytical solution by Agarwal et al. (AIAA Vol. 42, No. 1, January 2004).

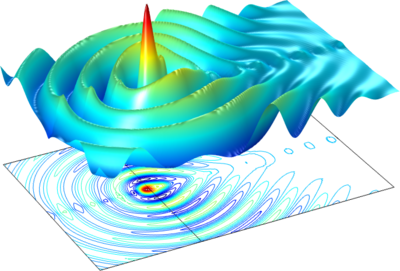

A point source is located in a narrow 2D jet of Mach 0.8. The model investigates the propagation of acoustic and non acoustic waves in the flow solving the linearized Euler equations on both frequency and time domain.

本案例使用的模块如下:

声学模块

针对您的实际问题,建模所需的 COMSOL® 产品组合取决于定义该问题的物理场接口。特定的物理场接口可能同时包含于多个产品中(参见技术规格表获取更多详细信息)。在您为一个项目确定最佳的产品组合时,我们建议您首先明确自身的所有需求,然后通过以下几种方式依据需求选取所需的产品:了解各个产品的功能、咨询 COMSOL 销售和技术支持团队,以及使用试用许可证进行软件试用。
