Shift into gear

Application ID: 16051

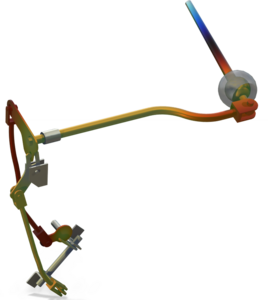

This model demonstrates the ability to simulate Multibody Dynamics in COMSOL. It comprises a multilink mechanism that is used in an antique automobile as a gearshift lever. It was created out of curiosity to find out how large forces are on the individual components. The model uses flexible parts, i.e. the Structural Mechanics Module was used along with the Multibody Dynamics Module.

案例中展示的此类问题通常可通过以下产品建模:

CAD 导入模块 多体动力学模块 结构力学模块
