波导虹膜带通滤波器

Application ID: 12737

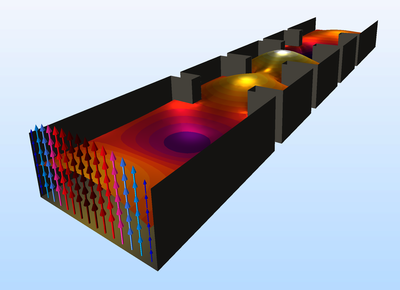

一种导电图案称为虹膜,放置横向波导图案,产生非连续性和并联电抗。可以通过与这种反应单元结合的级联空腔共振器实现带通频率响应,这可以通过在波导中插入一系列虹膜单元来实现。本案例模型由 WR90 X 带波导和对称的感应图案(虹膜)组成,计算得到的 S 参数显示出很好的带通响应和带外反射。

This model is included as an example in the following products:

RF 模块
