File Import for CATIA® V5 Module Update
3D Preview of CAD Assemblies
With COMSOL Multiphysics® version 6.4, when importing assemblies saved in the file format of the CATIA® V5 software, selecting specific components to import is now easier with the new 3D preview functionality within the Graphics window.

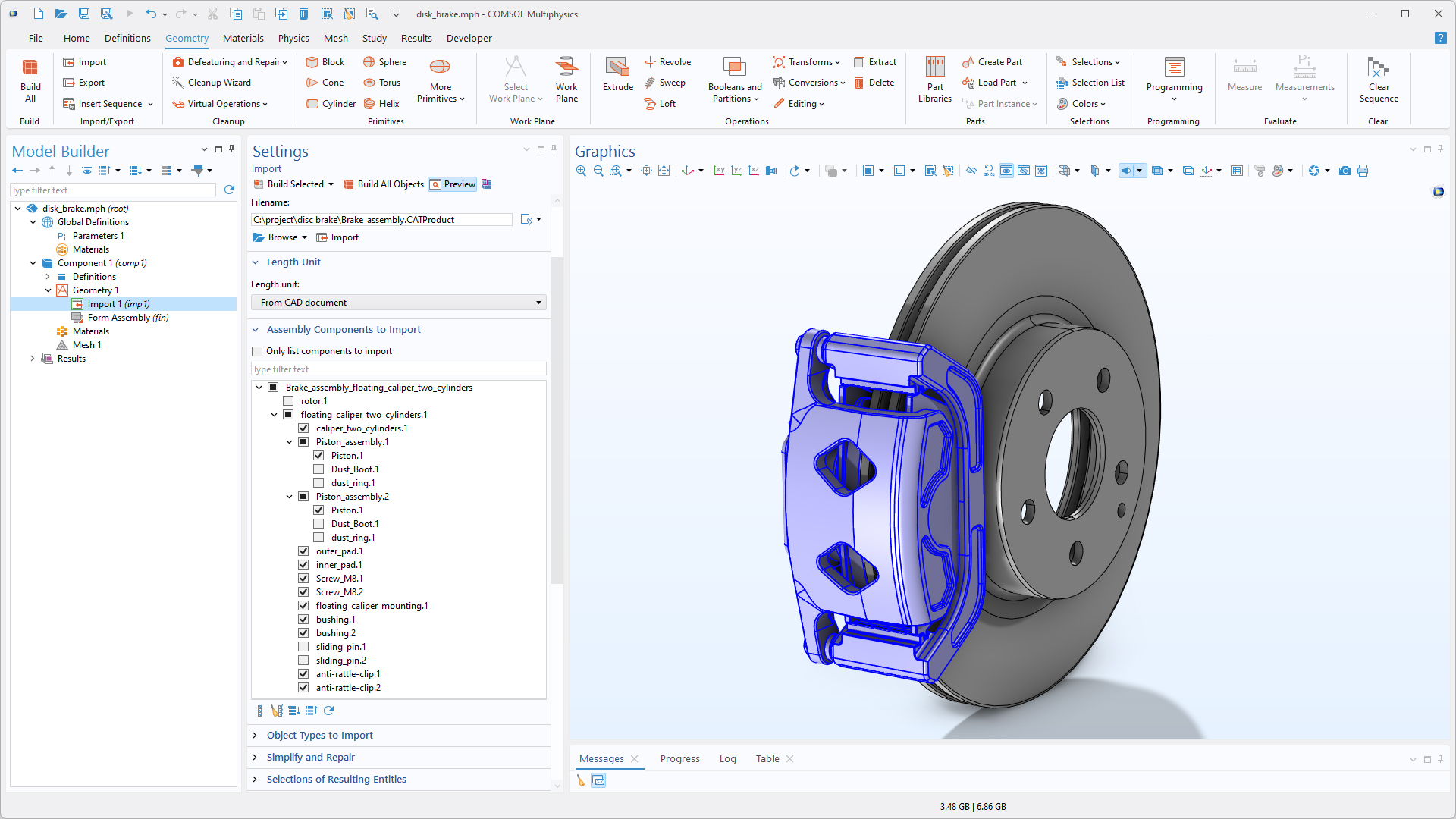

A 3D preview of a disc brake assembly displayed in the Graphics window. The highlighted model selections (blue) reflect the components chosen for import in the Assembly Components to Import section in the Import settings.
