Shock Wave Lithotripsy
Application ID: 131611

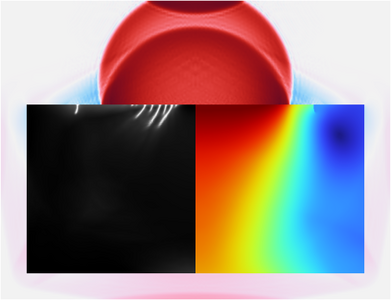

An acoustic point source emits a pressure wave in water that travels toward a piece of glass. Cracks are formed and propagate due to high tensile stresses developed in the glass. A fully coupled acoustic-structure interaction problem including phase field damage in solids is solved in the time domain. Time steps are taken to resolve the wave, while the mesh is locally refined near the surface to resolve the crack length scale. The model is inspired by numerical and experimental results provided in a reference.
案例中展示的此类问题通常可通过以下产品建模:
您可能需要以下相关模块才能创建并运行这个模型，包括：
建模所需的 COMSOL® 产品组合取决于多种因素，包括边界条件、材料属性、物理场接口及零件库，等等。不同模块可能具有相同的特定功能，详情可以查阅技术规格表，推荐您通过免费的试用许可证来确定满足您的建模需求的正确产品组合。如有任何疑问，欢迎咨询 COMSOL 销售和技术支持团队，我们会为您提供满意的答复。
